3D Tube Laser Cutting

Tube Laser Cutting Services in Lititz, PA

The most effective way for manufacturers to stand out among their competitors is to reduce lead times on fabricated parts without sacrificing quality. By leveraging high-quality and precise tube laser cutting services in Pennsylvania, you can tackle every project with a do-it-all, one-stop-shop approach that offers your business many advantages

PBZ Manufacturing is a leading tube laser cutting company in Lititz, Pennsylvania — learn more about our process and the benefits you will receive when you partner with us for all your project needs.

Get a Quote

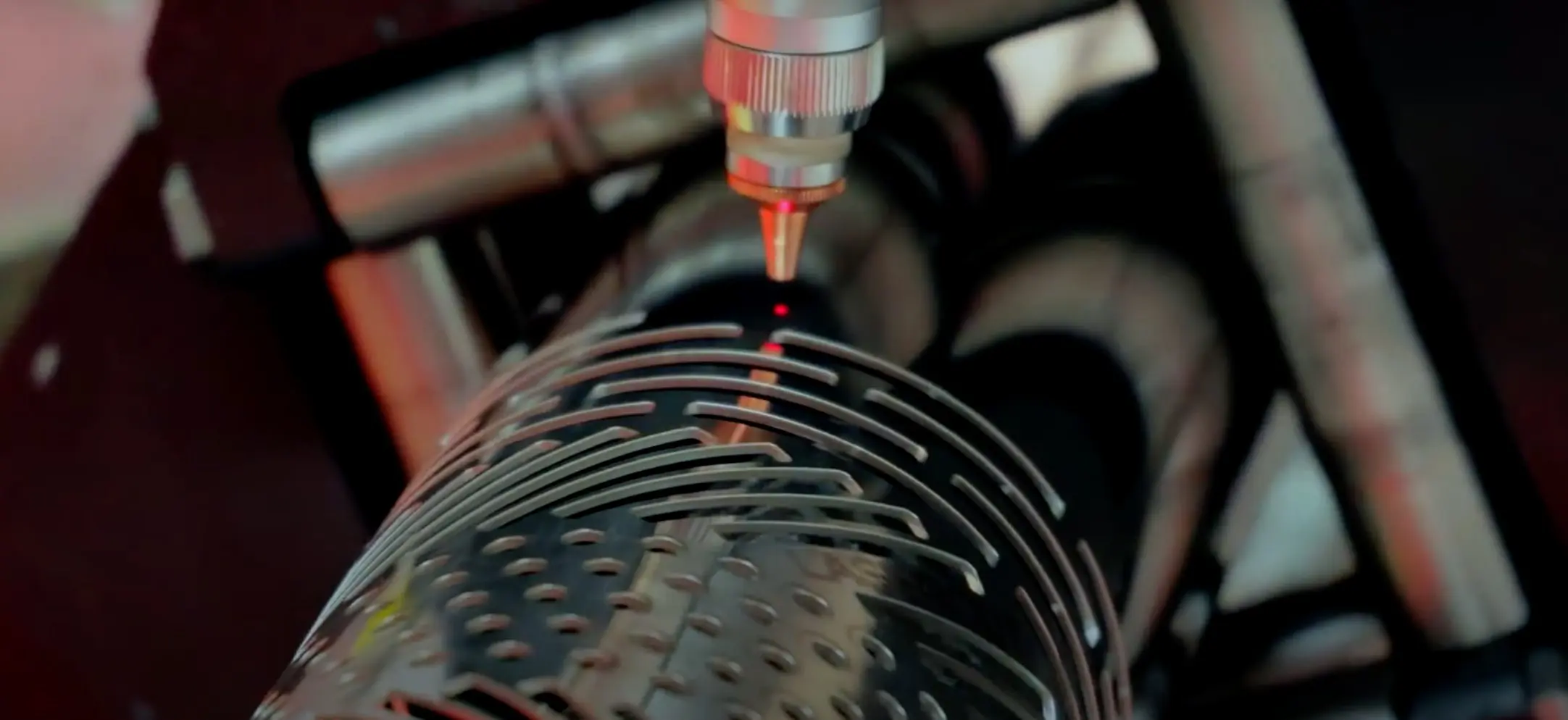

3D tube laser cutting

Why Use Tube Laser Cutting Services?

Today’s tube laser cutting processes have come a long way from traditional techniques. New technology ensures quick, efficient and precise results. Compared to sawing, coping, drilling and other fabrication processes, tube laser cutting helps you achieve your specifications effortlessly. Here’s a more detailed overview of the benefits you can expect with this technology.

  • Fast results: Even when projects are more intricate, tube laser cutting delivers notably faster results than other methods.
  • Exceptional quality: As there is only a single heat-affected zone, there is less chance of materials warping, ultimately contributing to distorted results.
  • Increased versatility: From robust steel to glass to lightweight aluminum, tube laser cutting technology works on multiple materials and profiles.
  • Improved accuracy: Our technology enables us to meet specifications within .005″ on most products. Customers experience less material waste with precise cuts.
  • Reliable results: Whether you’re working on your first or 100th cut, you can expect consistent results. Dependable cuts enable you to complete projects on time.

We Offer Premier 3D Laser Cutting Technology

At PBZ, we offer programmable structural lasers, also known as tube-cutting lasers, that are always prepped and ready for your project. What specifications can you expect for the three primary materials — mild steel, aluminum and stainless steel?

Mild Steel

Shape Min. Size Max. Size Max. Wall Thickness
Square 0.75 12″ 0.75
Round 0.75 16″ 0.75
Rectangle 0.75 10 x 8 0.75

Aluminum

Shape Min. Size Max. Size Max. Wall Thickness
Square 0.75 12″ 0.25
Round 0.75 16″ 0.25
Rectangle 0.75 10 x 8  0.25

Stainless Steel

Shape Min. Size Max. Size Max. Wall Thickness
Square 0.75 12″ 0.375
Round 0.75 16″ 0.375
Rectangle 0.75 10 x 8  0.375

Our industry-leading tube laser cutting services and other capabilities save you time and reduce your operating costs. In addition, we can handle many profile options for your tubes, including channel, rectangle, round, square, angle and other custom options.

Whether you need stainless steel, mild steel or aluminum laser-cut components, PBZ Manufacturing is here to help. Our precision laser cutting processes enable you to complete tasks like adding part numbers, assembly notes and weld lines.

Custom Tube Ends

Our experienced team uses a precision tube laser to help you complete projects of any size as quickly as possible. We help you create custom tube ends with mitering, coping and tabbing methods. In addition, our partnerships with certified welders allow us to handle bend cuts.

Other services include slot and tab joints to ensure accurate tube placement. Let us help you save time and money by doing the job right the first time.

What Are The Benefits of Working With Us on Your Tube Laser Cutting Project?

We’re a laser cutting company and full-service manufacturer that employs cutting-edge technology and experienced fabricators to deliver results on demand. Our processes also facilitate cost reduction and improved manufacturing lead times. We’re confident you’ll experience numerous positive outcomes when working with us.

Many structural lasers can only cut up to 5.5 inches round or square. Our revolutionary equipment allows you to go up to 10 inches round or eight inches square, giving you the means to broaden your project range. We also handle stock up to 27 feet in raw length and 14 feet in finished part length.

Our services offer unique metal cutting capabilities, such as cutting slots and tabs on adjoining parts for jigless assembly.

We ensure reliable results on tough materials by operating robust laser cutting technology. Our lasers can cut thicknesses up to three-quarter-inch mild steel.

Concentration loss or fatigue contributes to human errors in every industry. Our laser-cutting machinery helps eliminate the possibility of human error, which reduces unnecessary expenditure on material waste and lost time.

You have the convenience of knowing that our lasers are ready to re-run any project we’ve already programmed and produced for you.

Many laser heads move along perpendicular and vertical axes. However, our six-axis rotary head laser can also move longitudinally, and we can rotate the head 360 degrees, thus varying the angle of approach. Use this method for beveling, countersinking and other specialized precision metal cutting.

Ultimately, laser cutting with PBZ is more accurate and efficient while requiring less labor. It also provides better lead times than other methods, such as bandsaws or torching. We offer superb coverage that allows us to take on several different project specifications, and we’ll collaborate with you to determine all your requirements.

Why You Should Choose PBZ

At PBZ Manufacturing, we offer many benefits for your manufacturing processes to help reduce costs and make project completion go faster. Consider these advantages of partnering with us.

  • Experienced professionals: The PBZ team has years of experience across all our abilities and a group of certified welders. We take pride in being a reliable manufacturer of your components.
  • Reduced lead times: We minimize lead times for projects with a wide range of manufacturing abilities. Our all-in-one approach can help you cut costs while maintaining quality.
  • Better design and engineering: We create 3D CAD drawings in Solidworks to design and develop projects quickly. We take this extra step to confirm we have precise measurements and ensure we’ve met all your requirements before starting the fabrication, laser cutting or other processes.

We emphasize collaboration across all projects with the help of our tube laser cutting and other manufacturing services. When we finish your project, you can pick it up or have us ship it to you.

Contact Us For Tube Cutting Services

At PBZ, our mission is to decrease your supply chain with our set of comprehensive services. Tube laser cutting is one such service, and we’re ready to tackle any project scope. From product design to manufacturing, shaping and assembly, our team will help you achieve the best results in each stage of the process. Contact us online for effective tube laser cutting in Pennsylvania. Our experienced team will be in touch to discuss your specifications in four business hours or fewer.
